Insulated Fire-Rated Steel Doors

Certified insulated fire-rated steel doors with rockwool core for maximum thermal barrier and 1-3 hr fire protection. Built to UL & EN standards. Get a quote!
  • Product details
  • Insulated Fire-Rated Steel Doors

    High-Performance Fire Containment & Thermal Protection

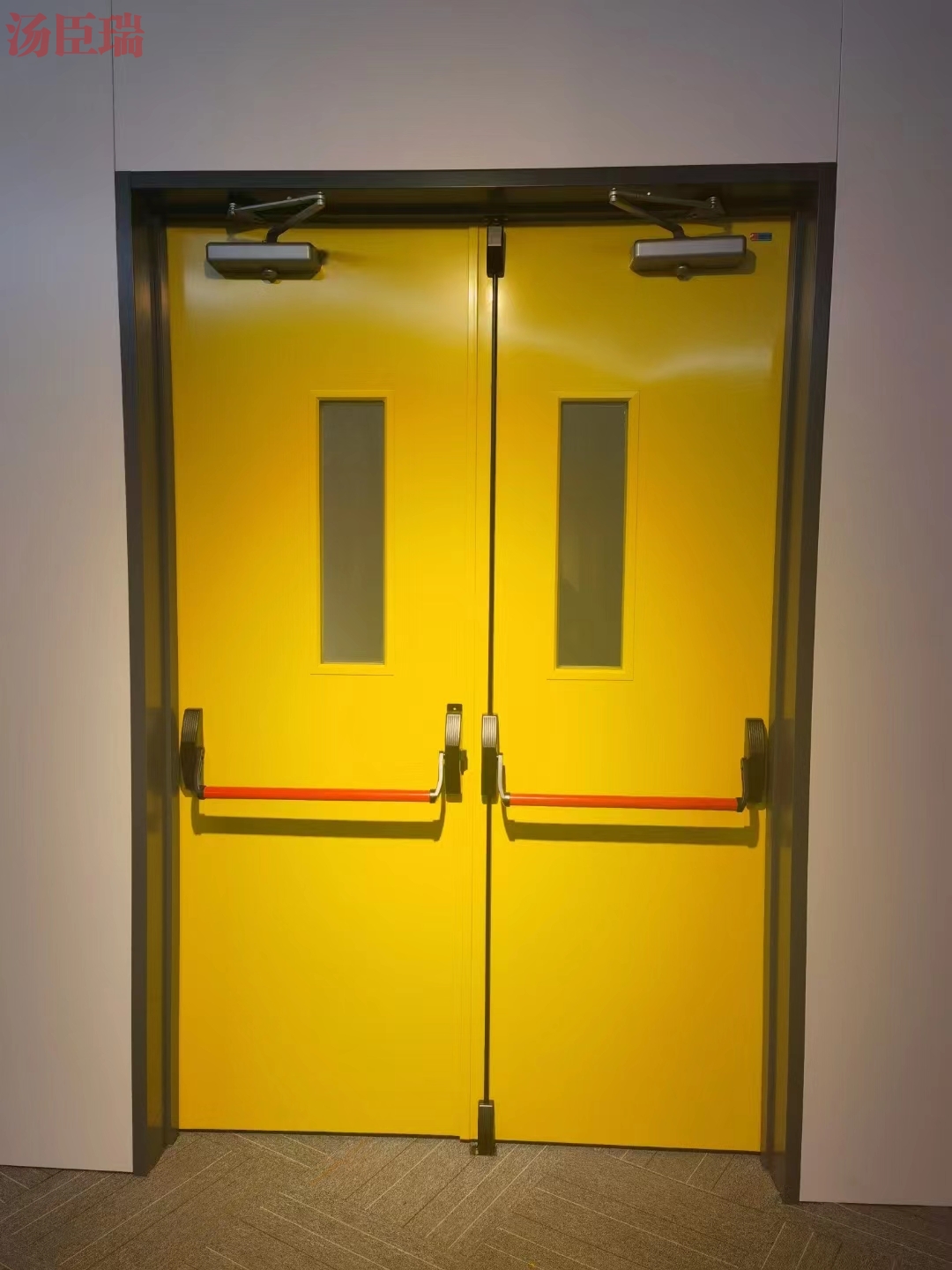

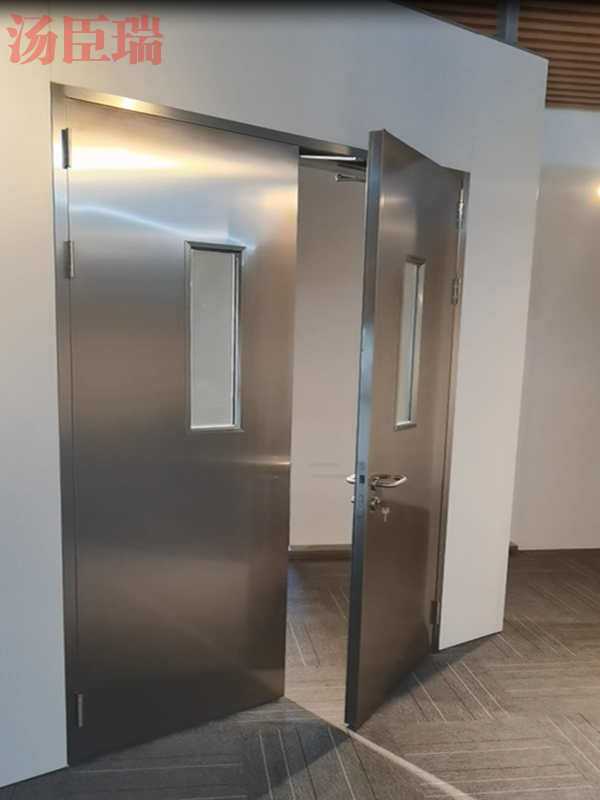

    Protect lives and infrastructure with our high-performance insulated fire-rated steel doors. Designed for commercial buildings, healthcare facilities, industrial plants, and multi-family residential complexes, these doors combine certified fire resistance with exceptional thermal and acoustic insulation.

    Engineered with heavy-duty galvanized steel skins and high-density fireproof insulation cores, our insulated steel doors deliver reliable structural stability, energy efficiency, and total peace of mind under extreme conditions.

    Key Features & Advantages

    • Certified Fire Resistance: Available in 30, 60, 90, and 120-minute fire ratings, compliant with international fire safety standards (UL 10C / EN 1634).

    • Superior Thermal Core: Filled with high-density rock wool or polyurethane (PU) insulation to minimize heat transfer and improve energy efficiency.

    • Heavy-Duty Construction: Fabricated with high-precision CNC equipment and double-skin galvanized steel for superior impact and warp resistance.

    • Acoustic & Smoke Sealing: Equipped with intumescent fire seals and perimeter weatherstripping to block smoke, toxic gas, and sound transmission.

    • Durable Surface Finishes: High-durability powder coating in custom RAL colors, wood grain film transfer, or satin brushed stainless steel.

    Technical Specifications

    ParameterSpecification
    Fire Rating30 / 60 / 90 / 120 Minutes (UL / EN Certified)
    Door Leaf Thickness$45\text{ mm} - 50\text{ mm}$ (Standard)
    Steel Sheet ThicknessDoor Leaf: $0.8\text{ mm} - 1.2\text{ mm}$ / Frame: $1.2\text{ mm} - 2.0\text{ mm}$
    Core MaterialHigh-Density Rock Wool / Polyurethane (PU) / Perlite Board
    Frame TypeKnock-Down (KD) Frame / Welded Frame (Drywall / Masonry anchor options)
    Surface FinishPolyester Powder Coating (RAL Colors) / Wood Grain Finish / Primer Coat
    Hardware CompatibilityPanic Push Bars, Mortise Locksets, Heavy-Duty Fire Hinges, Automatic Door Closers
    Door ConfigurationsSingle Door / Double Door / Unequal Leaf / Transom & Louver Panels

    Typical Applications

    • Commercial & High-Rise Buildings: Fire exit stairwells, electrical rooms, and utility shaft access.

    • Hospitals & Healthcare Facilities: Patient corridors, ICU zones, and cleanroom partitions requiring hygienic and fire-safe enclosures.

    • Industrial & Logistics Centers: Warehouse fire walls, manufacturing workshops, and server room entrances.

    • Public Infrastructure: Airport terminals, metro stations, shopping malls, and parking garages.

    Customization & OEM/ODM Supply

    As a trusted steel door manufacturer and exporter, we provide fully customized OEM/ODM steel door solutions tailored to your exact architectural specifications and local building codes. Contact our engineering team for CAD drawings, technical documentation, and factory-direct wholesale pricing.


Previous:

Next:

Product Inquiry

Please leave your message, we will contact you quickly after receiving it, thank you for your support!

Insulated Fire-Rated Steel Doors
  • What kind of product do you need?
  • What's your budget?
  • What other information do you need to know?

Technical Knowledge Base

Q

What is the main difference between UL 10C and EN 1634 steel fire door standards?


A

UL 10C and EN 1634 differ primarily in testing methodology and regional acceptance: UL 10C is the positive pressure fire test standard widely used in North America and GCC countries, while EN 1634 is the European standard evaluating fire resistance and smoke control for Europe and Asia.
Testing Method: UL 10C requires mandatory hose stream impact testing; EN 1634 tests both fire integrity (E) and thermal insulation (EI) parameters.
Fire Ratings: UL ratings range from 20 to 180 minutes (3 hours); EN ratings are classified as 30, 60, 90, or 120 minutes.
Regional Usage: Choose UL 10C for Saudi/GCC projects following NFPA guidelines; select EN 1634 for European and British-standard-aligned project specifications.

Q

How long can commercial steel fire doors withstand direct high temperatures?


A

Commercial steel fire doors are engineered to withstand direct high-temperature fire exposure from 20 minutes up to 180 minutes (3 hours), depending on the internal core material, gauge of galvanized steel, and certified testing standard.Fire RatingCore TypeTypical Commercial Applications60 Minutes (1 Hour)Honeycomb / Mineral WoolOffice corridors, residential stairwells, hotel rooms90 Minutes (1.5 Hours)Mineral Wool / PerliteHospital corridors, cleanrooms, commercial utility rooms120–180 Minutes (2–3 Hours)High-Density Mineral WoolIndustrial warehouses, transformer rooms, high-risk fire zones
